Description

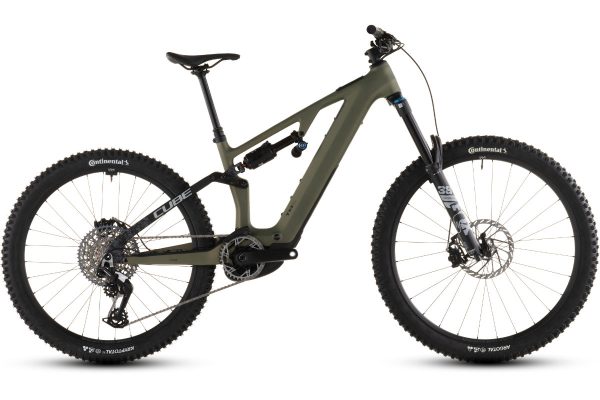

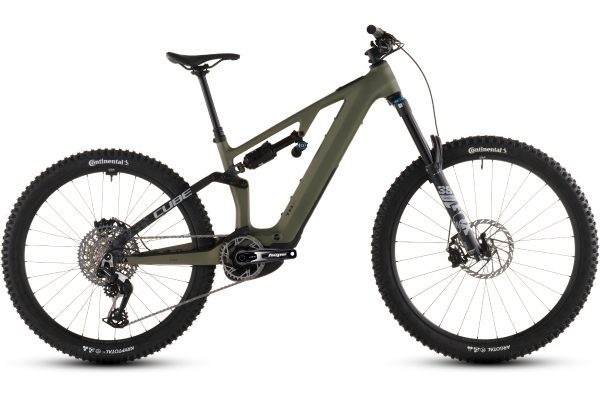

Cube AMS Hybrid 177 C:62 TM 600X
The Cube AMS Hybrid 177 C:62 TM 600X is built for riders who want a lighter, more capable all mountain e-mtb with the power and range to take on the rowdiest trails. The C:62 carbon frame is the centre of the bike, designed around Bosch’s latest motor mount for compatibility with both SX and CX motors. A 600 Wh PowerTube battery sits cleanly inside the frame, with the option to run a lighter 400 Wh unit when low weight is the priority.
Geometry and kinematics are tuned for high speed riding on technical terrain. The bike uses mullet wheels and 170 mm travel front and rear for confident handling. An angle adjustable headset lets you fine tune the steering feel. Internal cable routing keeps the frame clean, and details like the UDH hanger and direct mount chain guard add practicality.
The AMS Hybrid 177 C:62 TM 600X is built to take on big mountain terrain with power, control and stability.
Key Features
-
C:62 carbon frame
-
Bosch CX motor
-
600 Wh PowerTube battery
-
170 mm Fox suspension
-
Newmen Beskar 30 wheels
-
Continental Argotal and Kryptotal tyres
-
Sram Maven Silver brakes
-
Sram Transmission 90 drivetrain
-
Kiox 400C controller
-
Mullet wheel setup
Lightweight And Capable Carbon Frame
The AMS Hybrid 177 C:62 frame uses Cube’s C:62 carbon to reduce weight and increase stiffness. The Bosch BDU38YY mount works with both SX and CX motors. The integrated 600 Wh battery keeps weight centred, and the frame can also take a 400 Wh Compact PowerTube for a lighter setup. Geometry and kinematics are tuned for aggressive riding at speed.
Controlled And Confident Suspension

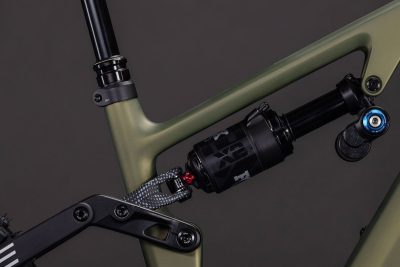

Fox 38 Float Performance forks with 170 mm travel provide stiffness and support for steep and rough terrain. The Float X2 Performance shock adds controlled rear suspension with tuning for all mountain riding. The setup is designed for stability, traction and predictable handling.
Powerful Bosch CX Drive System
The Bosch CX motor delivers strong support on climbs and technical sections. The Kiox 400C controller gives clear information on power, range and ride data. The system is integrated neatly into the frame for a clean look.
Reliable Sram Transmission Drivetrain
Sram’s Transmission 90 drivetrain provides smooth shifting under load. The 1×12 setup is designed for durability and precise performance on demanding terrain. Power is delivered cleanly and reliably to the trail.
Strong Braking And Handling
Sram Maven Silver hydraulic disc brakes offer powerful stopping performance. The mullet wheel setup combines a 29 inch front wheel for stability with a 27.5 inch rear wheel for agility. Newmen Beskar 30 wheels are paired with Continental Argotal and Kryptotal tyres for grip and control on loose and technical surfaces.
Bike specifications are advised by the manufacturer and can be subject to change without prior warning.
