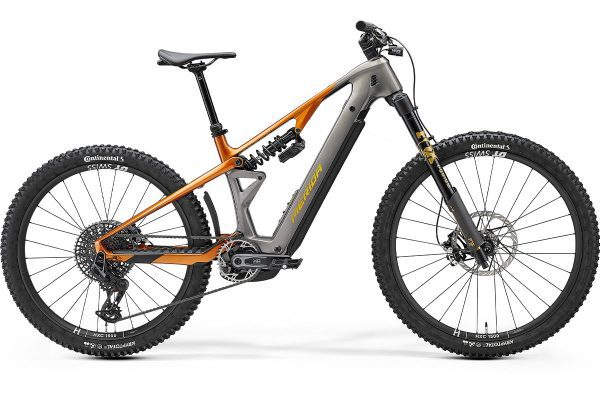

Merida Lithos 10K 2027

£11,000.00

Merida Lithos 10K Electric Mountain BikeThe Lithos 10K is Merida's ultimate enduro e MTB. It uses a lightweight CF3 carbon frame with 170 mm front and 174 mm rear travel, paired with the new Bosch Performance Line CX R motor and a removable 800 Wh battery. The bike is built — Read More

GTIN (UPC): 26MERIDALITHOS10K27 Categories: , , , ,

Spread the cost from £305.56 monthly*

Buying Guides

Description

Merida Lithos 10K Electric Mountain Bike

The Lithos 10K is Merida’s ultimate enduro e MTB. It uses a lightweight CF3 carbon frame with 170 mm front and 174 mm rear travel, paired with the new Bosch Performance Line CX R motor and a removable 800 Wh battery. The bike is built for riders who want the very best suspension, drivetrain and wheel technology in a tough, race ready package. With refined geometry, advanced kinematics and premium components, the Lithos 10K delivers maximum control, traction and speed on the steepest and roughest terrain.

Key Features

  • CF3 carbon frame with 170 mm front and 174 mm rear travel

  • Mullet wheel setup with full 29 option

  • Bosch Performance Line CX R motor with 120 Nm torque

  • Removable 800 Wh battery

  • Fox Podium inverted fork

  • Fox DHX Live Valve NEO coil shock

  • SRAM X0 Eagle AXS wireless drivetrain

  • DT Swiss HXC 1500 carbon wheels

  • Continental Kryptotal tyres

  • Lifetime frame warranty

Lightweight Carbon Frame

The CF3 carbon frame is designed for all mountain and enduro riding. It offers a strong, lightweight platform with 170 mm travel and geometry tuned for traction, stability and speed. The frame is Category 4 rated and covered by a lifetime warranty. Riders can choose between a mullet setup or full 29 inch wheels.

Bosch CX R Motor And Battery

The Bosch Performance Line CX R motor delivers 120 Nm torque for steep climbs and technical terrain. The removable 800 Wh battery provides long range for big days. A lighter 600 Wh battery is available separately for riders who want more agile handling.

High Performance Suspension And Drivetrain

A Fox Podium inverted fork and Fox DHX Live Valve NEO coil shock provide advanced suspension control. The Live Valve system automatically adjusts damping for speed and efficiency. The SRAM X0 Eagle AXS wireless drivetrain offers fast, precise shifting under load.

Carbon Wheels And Conti Tyres

DT Swiss HXC 1500 carbon wheels and Continental Kryptotal tyres give strength, grip and confidence on rough ground. The bike is ready for aggressive riding and racing straight out of the box.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Frame

LITHOS CF I ; carbon; 160mm travel; 29" x 2,4" max. WHS; 148×12 AST, intube;
Rear Shock

Fox Float X Factory Live Valve Neo
Fork

Fox Podium Factory; 170mm travel; tapered; 44mm fork offset; 29×2.6" max tyre size
Stem

Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount – 40 mm all sizes
Handle Bars

Race Face Era; 780mm wide
Brakes

Sram Maven Ultimate
Brake Levers

Sram Maven Ultimate
Rear Derailleur

Sram X0 Eagle Transmission AXS
Rear Hub

Part of Wheelset – DT Swiss HXC 1500; 148x12mm; 6-Bolt; SRAM XD
Front Hub

Part of Wheelset – DT Swiss HXC 1500; 110x20mm; 6-Bolt
Shift Levers

Sram dropper lever MMX and Sram AXS Pod Ultimate Controller
Cassette

Sram CS XS 1295 T-TYPE 10-51; 12 speed
Chainset

Sram XX Eagle Transmission E-MTB for Bosch; 36 teeth with Sram XO Eagle E-MTB Crank, 160mm all sizes
Wheels

Part of Wheelset – DT Swiss HXC 1500; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included)
Front Tyre

Continental Kryptotal-F; 29×2.4"; fold; TR; Enduro casing; Super soft Compund
Rear Tyre

Continental Kryptotal-R; 27.5×2.4" ; fold; Enduro casing, soft Compound
Saddle

Proxim Altius Triox; V-mount adapter; incl. Merida minitool
Seat Post

Merida TEAM TR II; 34.9mm diameter; 0mm layback; all sizes 30-230mm travel
Battery

600Wh
Motor

Bosch PowerTube 600 ; 600Wh, Bosch Performance Line CX-R
Discipline

MTB
Material

Carbon
Wheel size

MX
Electric

Yes
Season

2027
